by Dale Mueller

Here are some photos of Dale Mueller's engine test stand.

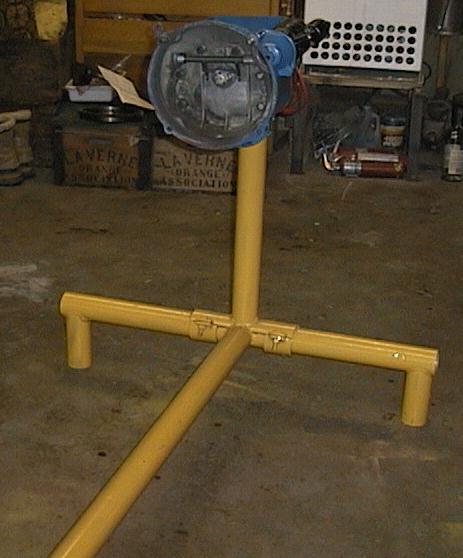

engine stand, bell housing view

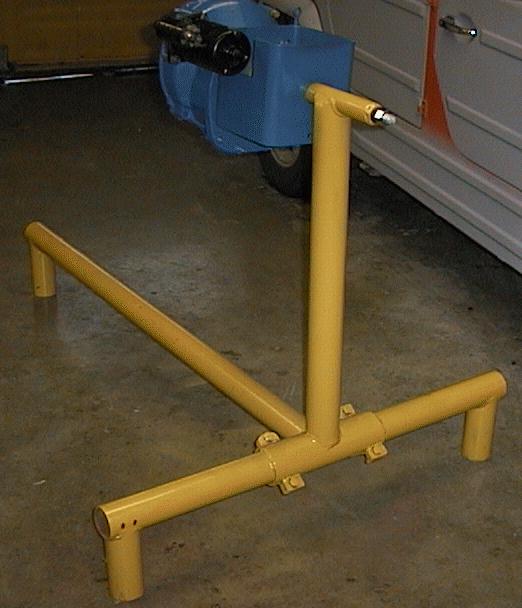

engine stand, starter side view

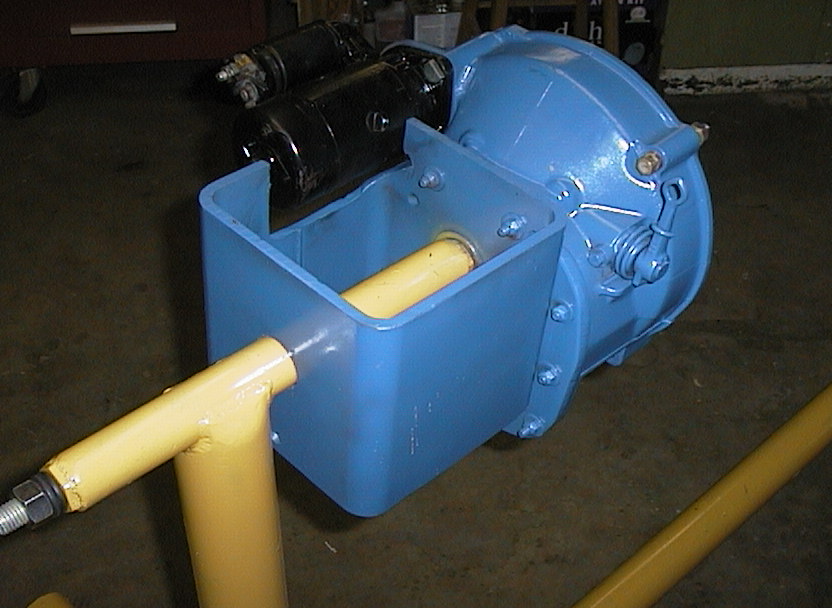

instrument panel space close-up

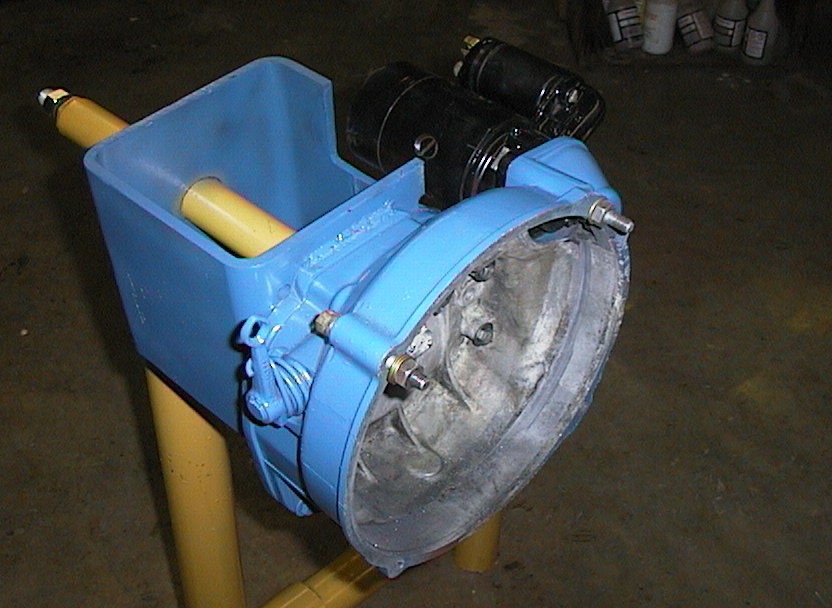

another instrument panel space close-up

short block mounted another short block mounted short block rotated

The instrument panel has oil pressure, oil temp, starter button, hour meter and ignition toggle switch and pilot light for "ignition on". The little jar contains a dashboard tachometer from an old Volvo.

close-up of instrument panel
